Parameters:
– nominal pressure 25 bar
– maximum working temperature 120⁰C
– working media: hot and cold water for water supply and central heating systems

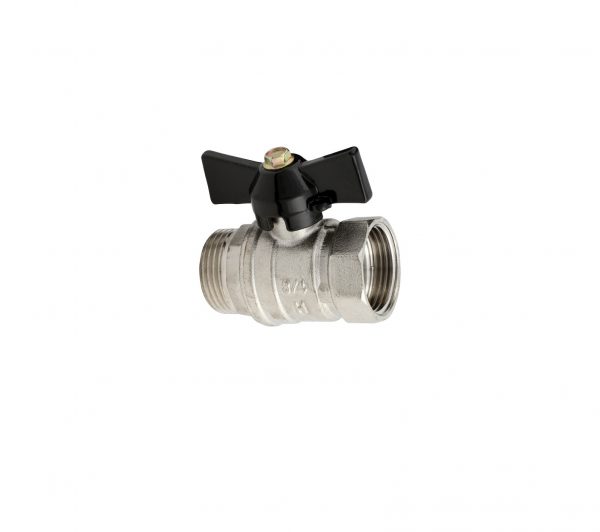

Execution:
– body made of brass
– chrome-plated ball made of brass with PTFE Teflon seal (only 1/4 turn is required to close the valve)
– PVC coated steel lever
– a compression nut enabling compensation of clearances
– nickel-plated surface

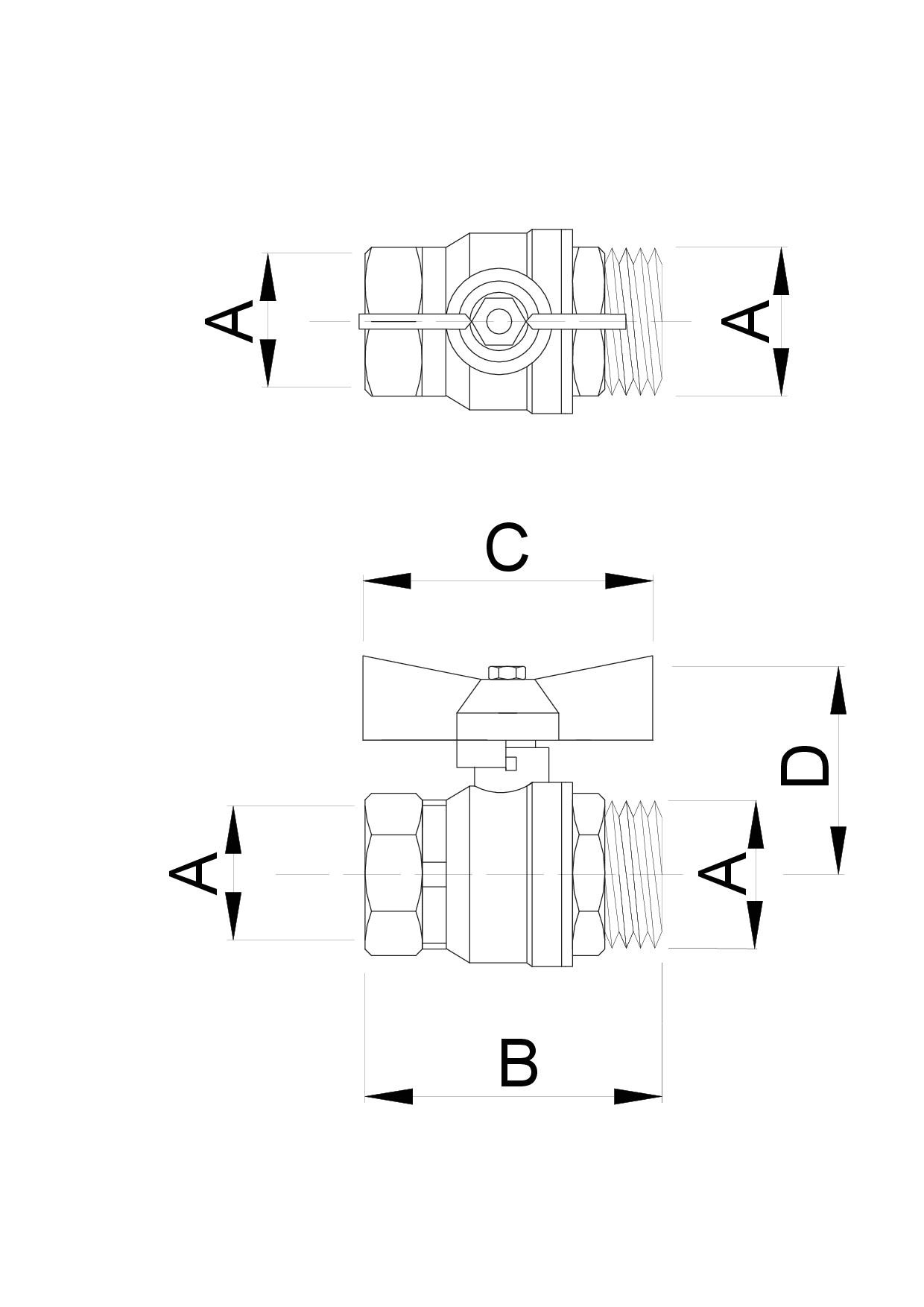

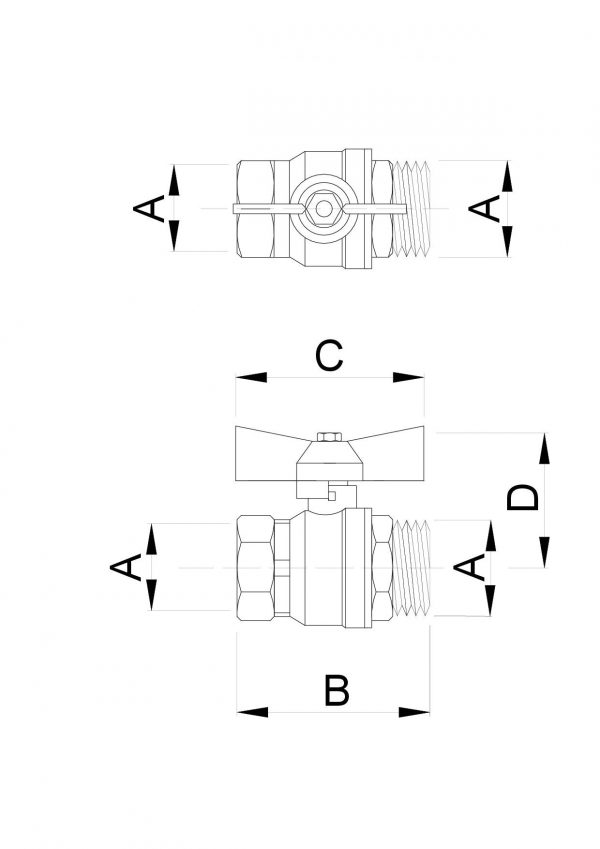

| INDEX | DN | Ball bore diameter [mm] | P [Mpa] | A [inch] | B [mm] | C [mm] | D [mm] | Size | Collective packaging [pcs] | EAN code | Net weight (kg) |
| ZKWMD-15-NW | 15 | 12 | 2,5 | G1/2 | 48,5 | 50 | 36,5 | 1/2″ | 20/200 | 5900308732533 | 0,114 |
| ZKWMD-20-NW | 20 | 15 | 2,5 | G3/4 | 54 | 52 | 40 | 3/4″ | 14/140 | 5900308732540 | 0,170 |
| ZKWMD-25-NW | 25 | 20 | 2,5 | G1 | 59 | 61 | 49 | 1″ | 8/80 | 5900308732557 | 0,267 |
